LiPo Rechargeable Battery – 10 Capacity Options

LiPo Rechargeable Battery – Multiple Capacities and Sizes

The LiPo Rechargeable Battery range offers ten capacity options for compatible electronics projects, portable devices and DIY builds. Whether you are developing a prototype, replacing an existing battery or assembling a custom electronic device, you can select the capacity and model that suit your requirements.

Lithium polymer (LiPo) batteries are rechargeable lithium-based batteries commonly used in portable electronics and compact electronic designs. Choosing the right battery involves more than comparing capacity: voltage, physical dimensions, connector type and electrical requirements must also match your device.

Quick answer: This product offers ten LiPo battery options, from 200mAh to 10000mAh, with individual model numbers, approximate dimensions and retail prices. Select your preferred variation and verify its compatibility before ordering.

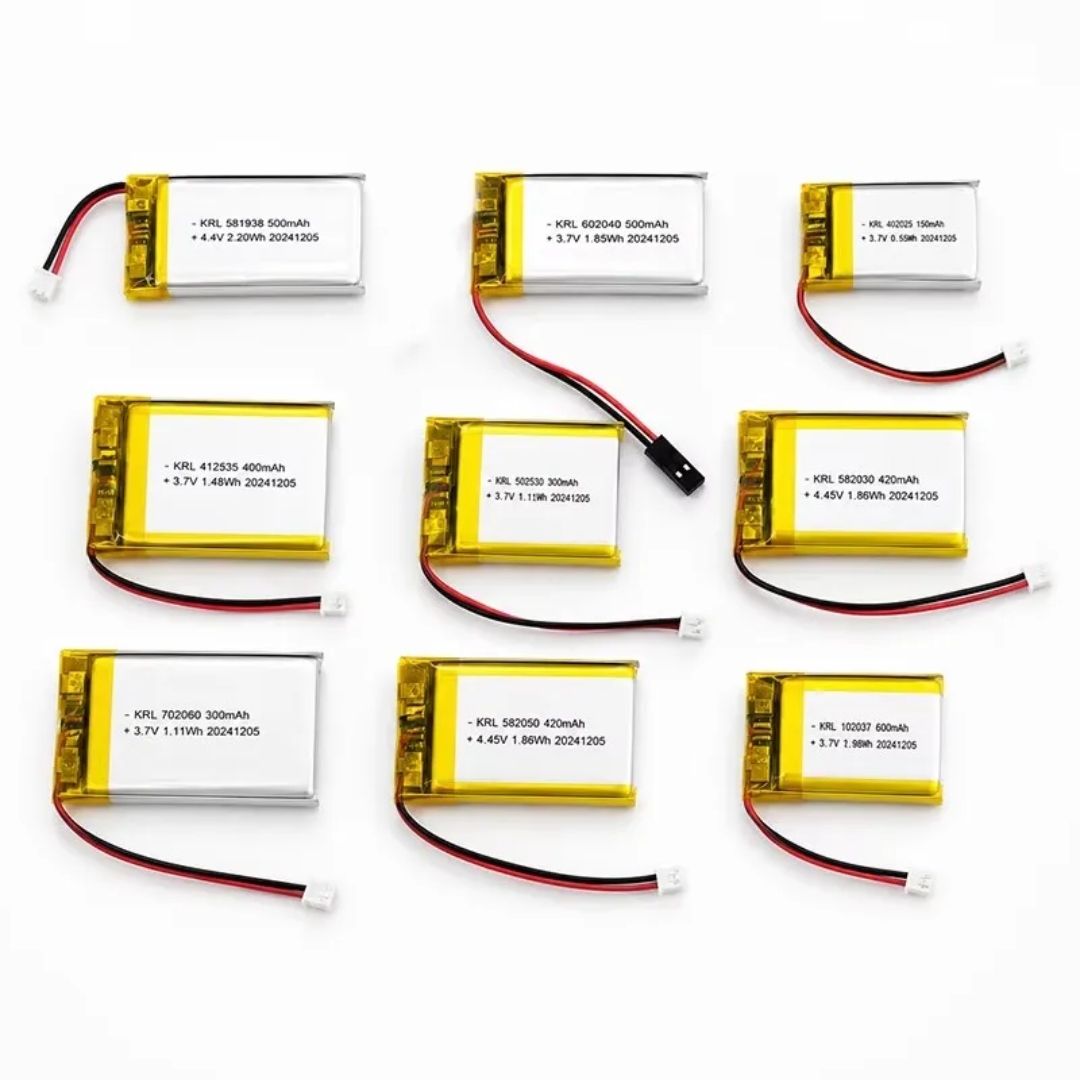

Available LiPo Rechargeable Battery Capacities, Sizes and Prices

Compare the ten available options below before selecting your variation.

Dimensions are presented as approximate measurements based on the supplied model codes. Confirm the actual measurements if your application has tight space requirements.

Choose the required capacity using the WooCommerce variation selector to view the corresponding price.

What Do LiPo Battery Model Numbers Mean?

Here is a useful detail when selecting a replacement battery: many LiPo pouch-cell model numbers indicate approximate physical dimensions rather than battery capacity.

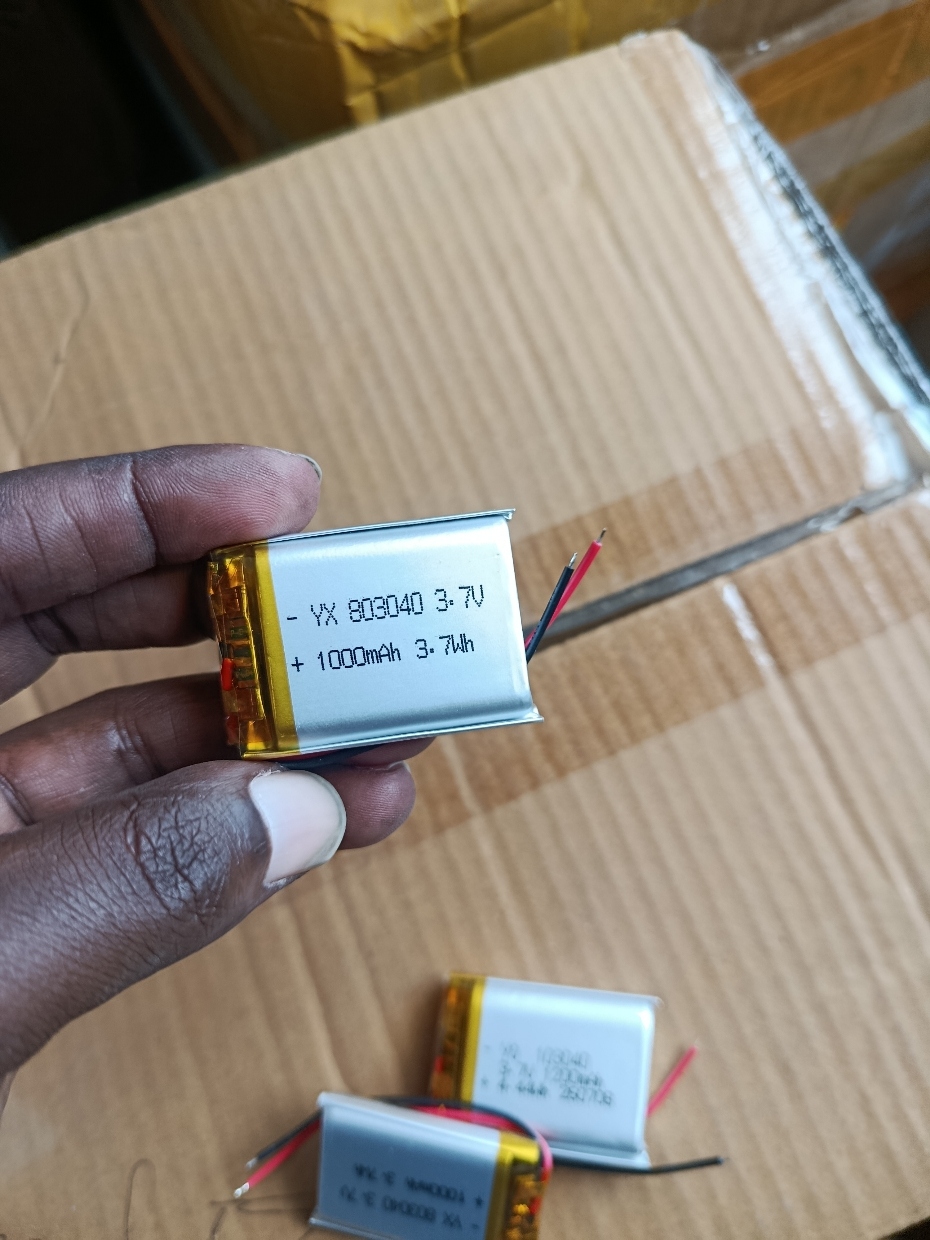

For example, the model code 103040 commonly represents approximately 10mm thick, 30mm wide and 40mm long. Similarly, 803450 commonly indicates approximately 8 × 34 × 50mm.

This convention helps customers estimate the space a battery may occupy. However, model-number conventions can vary, so use the listed dimensions as a guide and confirm actual measurements when a precise fit is required.

Understanding LiPo Battery Capacity in mAh

The abbreviation mAh means milliampere-hour and describes a battery’s rated electrical charge capacity. The available options range from 200mAh to 10000mAh, allowing you to compare different capacity requirements.

A higher capacity can provide more stored charge under comparable conditions, but it does not guarantee a particular operating time. Runtime depends on the connected device’s power consumption, operating conditions and battery characteristics.

Capacity and physical size are also different specifications. Do not assume that a battery with a higher mAh rating will fit the same space as a lower-capacity battery.

Applications of LiPo Rechargeable Batteries

Electronics prototyping: Suitable for compatible electronic projects that require a rechargeable battery.

DIY electronics builds: Useful for custom devices where the battery must meet specific physical and electrical requirements.

Portable electronics: Can be considered for compatible portable devices designed for the selected battery specifications.

Student and educational projects: Useful for suitable electronics experiments, prototypes and practical learning activities.

Battery replacement: May be appropriate when replacing an existing battery if the voltage, dimensions, connector and other electrical specifications match.

How to Choose the Correct LiPo Battery

Before choosing a variation, check these important details:

• Voltage: Confirm that the battery’s nominal voltage matches the device requirements.
• Capacity: Choose a suitable mAh rating for your project’s needs.
• Dimensions: Compare the battery’s thickness, width and length with the available space.
• Connector and polarity: Check the connector type, wiring arrangement and polarity.
• Discharge requirements: Ensure the battery supports the current demands of your application.
• Charging requirements: Use a charging arrangement compatible with the specific battery.

Do not select a battery based on capacity or model number alone. The physical fit, electrical specifications and charging requirements all matter.

Safe Use and Charging

Use only a compatible charger and follow the battery and device manufacturer’s instructions. Avoid short circuits, punctures, crushing, overheating and charging damaged or swollen batteries. Do not use a battery showing signs of damage.

For additional technical information, consult Battery University’s guide to lithium-polymer batteries.

Frequently Asked Questions About LiPo Rechargeable Batteries

What is a LiPo rechargeable battery?

A LiPo battery is a rechargeable lithium-based battery commonly used in compatible portable electronics and electronic projects. The correct battery depends on the device’s voltage, physical space, connector and other electrical requirements.

What does mAh mean on a LiPo battery?

mAh stands for milliampere-hour and indicates rated charge capacity. A higher capacity can provide more stored charge, but actual operating time depends on the device’s power consumption and other conditions.

What does the model number 103040 mean?

For many LiPo pouch cells, 103040 commonly represents approximately 10 × 30 × 40mm. The model number can help estimate size, but check the listed dimensions before ordering.

Can I replace my battery with any 3.7V LiPo battery?

No. Matching nominal voltage alone is not enough. Check dimensions, connector, polarity, discharge requirements and charging specifications before choosing a replacement.

Which LiPo battery capacity should I choose?

Choose a capacity that meets your project’s needs while fitting the available space and satisfying the device’s electrical requirements. This listing offers ten options from 200mAh to 10000mAh.

Do all the batteries have the same dimensions?

No. The listed variations have different model numbers and dimensions. Compare the measurements for your selected variation with the space available in your device.

Order Your LiPo Rechargeable Battery from Viroh Store

Compare the ten capacity options, model numbers, dimensions and prices to find a battery that suits your project. Select your preferred variation and confirm compatibility before ordering.
